Description

This is the new version with pads for uninverted telemetry and smart port!

Love the compact design of the XM+ but need full telemetry like with the X4R-SB? FrSky listened and released the R-XSR to have the best of both worlds! The R stands for Redundant for its ability to be able to run a slave Rx if that s your thing…

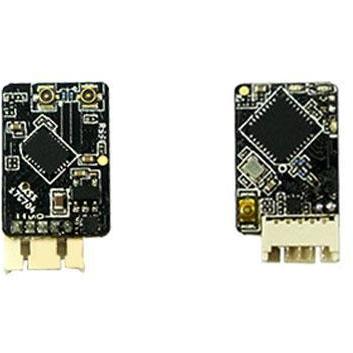

The FrSky ultra mini receiver R-XSR is the evolution of the popular full range XSR receiver. The R-XSR is a standalone receiver with all the functionality of the full size XSR (including telemetry), but at 1 3 size and weight of XSR receiver. The RXSR also has an integrated diversity with 2x antennas for a solid RC link, and the IPEX connector makes it convenient to replace antennas.

Features

• Ultra mini size and light weight
• Support telemetry and Smart Port enabled
• Full range
• Switchable SBUS CPPM signal output
• Supports redundancy function
• IPEX connector, replaceable antennas

• Specifications

  • Dimension: 16*11*5.4mm (L*W*H)
  • Weight: 1.5g
  • Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
  • Operating Voltage Range: 4~10V
  • Firmware Upgradable
  • Compatibility: FrSky X Series modules and radios in D16 mode

  • This receiver comes pre-loaded with ACCESS firmware, Non-FrSky Radios and FrSky radios with older ACCST versions will be rendered unable to bind. Please flash your RX with the legacy firmware in this link to remedy this issue.
